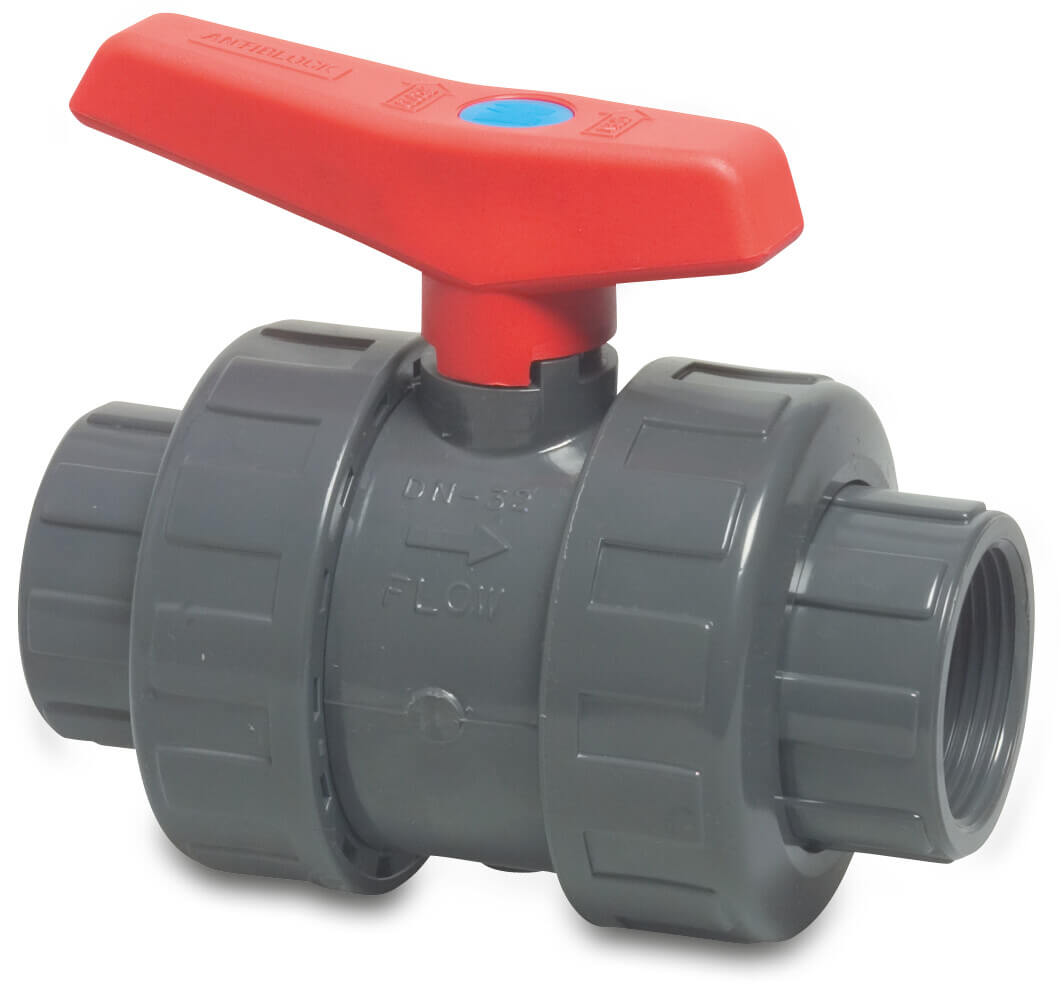

Ball valve PVC-U 1 1/4" female thread 10bar DN32 grey type AK
Part number 0161513
Downloads
Select your item below or order directly via
full product table
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay excl. VAT
€20.30 / 1 pcs
€20.30 / pcs
Price to pay incl. VAT
€24.97 / 1 pcs
€24.97 / pcs
Out of stock, please contact us for availability
Frequently bought together
0403005
0401165
0403035
0412032
Technical details
-
Colourgrey
-
Max. temperature60 °C
-
DN32
-
Handle materialPVC-U
-
MaterialPVC-U
-
Colour leverred
-
Pressure10 bar
-
Operationlever
-
Material sealPE/EPDM
-
Connectionfemale thread
-
TypeAK
-
EAN4019305056885
-
Part number0161513
Dimensions
-
Ct-193 mm
-
Lb148 mm
-
R62 mm
-
ØDf32 mm
-
ØDi-11 1/4 "
-
ØDi-21 1/4 "
Similar products
Product description
This Ball valve with double union, type AK female thread, made out of PVC-U, has a female thread connection and works at a maximum pressure of 10 bar. Seal material PE/EPDM. Female thread connections are according to EN-ISO 228. The valves are available in a wide range of sizes.
AK series PVC ball valves are very well respected in pool construction because they still carry the same mounting dimensions.
