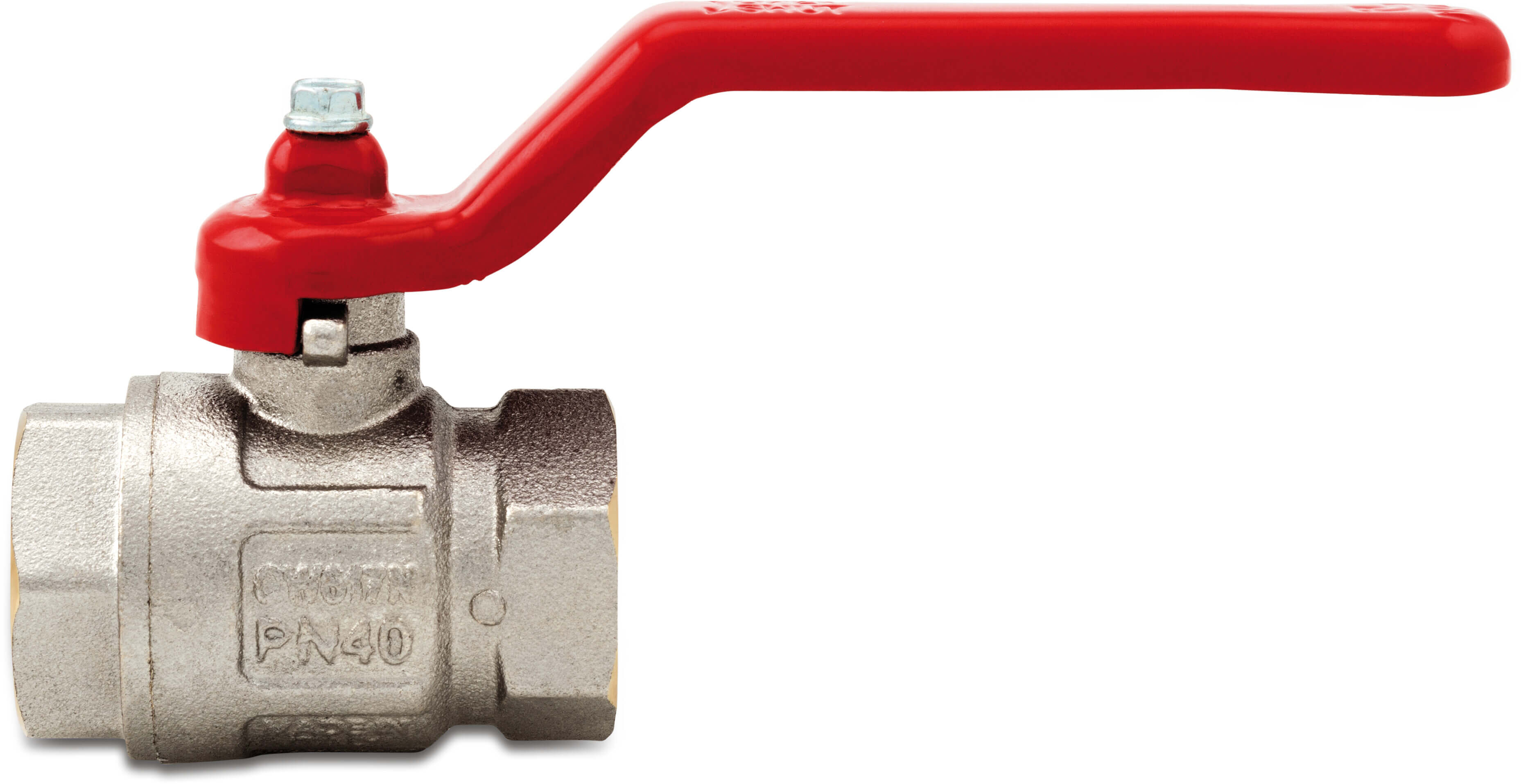

Itap Ball valve brass nickel plated 1/2" female thread 50bar type 090

Part number 0402313
Itap Ball valve brass nickel plated 1/2" female thread 50bar type 090
Itap Ball valve brass nickel plated 1/2" female thread 50bar type 090
Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay excl. VAT €7.33 / 1 pcs
€7.33 / pcs
Price to pay incl. VAT €9.02 / 1 pcs
€9.02 / pcs
104 in stock in Veghel, NL - Item %s is ready to ship, minimum delivery time: %s working days
pcs
Box qty:
108 pcs
MSQ:
1 pcs

Frequently bought together
7036807
Profec Compact ball valve PVC-U 1/2" imperial glue socket white

€0.77
Multi-Fit Nipple brass nickel plated 1/2" male thread 20bar KIWA
0701919
Multi-Fit Nipple brass nickel plated 1/2" male thread 20bar KIWA

€1.90
Itap End cap brass 1/2" male thread 20bar type 494
0701117
Itap End cap brass 1/2" male thread 20bar type 494

€1.02
Multi-Fit Elbow 90° brass nickel plated 1/2" male thread x female thread 20bar KIWA
0701932
Multi-Fit Elbow 90° brass nickel plated 1/2" male thread x female thread 20bar KIWA

€2.70
Multi-Fit Deck elbow 90° brass nickel plated 1/2" female thread x male thread 20bar KIWA
0701935
Multi-Fit Deck elbow 90° brass nickel plated 1/2" female thread x male thread 20bar KIWA

€3.67
Multi-Fit T-piece 90° brass nickel plated 1/2" male thread 20bar KIWA
0701925
Multi-Fit T-piece 90° brass nickel plated 1/2" male thread 20bar KIWA

€2.82
Plug valve PP 1/2" male thread x female thread 6bar black
7038704
Plug valve PP 1/2" male thread x female thread 6bar black

€2.32
Profec Quick coupler brass 1/2" male thread CD 40 12bar
0420212
Profec Quick coupler brass 1/2" male thread CD 40 12bar

€3.00
Profec Click connector brass 1/2" female thread x male click
0500108
Profec Click connector brass 1/2" female thread x male click

€2.11
Non return valve PA 1/2" female thread 10bar white type 2700
0440855
Non return valve PA 1/2" female thread 10bar white type 2700

€5.91

Technical details

  • Material
    brass
  • Colour lever
    red
  • Surface treatment
    nickel plated
  • Operation
    lever
  • Material seal
    PTFE
  • Connection
    female thread
  • Handle material
    steel
  • Pressure
    50 bar
  • Type
    090
  • Ball material
    hard chrome plated brass
  • Max. temperature
    150 °C
  • EAN
    4019305002929
  • Part number
    0402313
  • Manufacturer
    Itap

Dimensions

  • Ct-1
    41 mm
  • F-1
    12.5 mm
  • F-2
    12 mm
  • Lb
    50,5 mm
  • R
    80 mm
  • ØDf
    15 mm
  • ØDi-1
    1/2 "
  • ØDi-2
    1/2 "
Technical drawing

Barcode

4019305002929

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
0402311
€5.92
168
1
0402312
€6.06
168
1
0402313
€7.33
108
1
(104)
0402314
€10.60
64
1
(159)
0402315
€16.06
48
1
(46)
0402316
€25.81
32
1
0402317
€37.92
16
1
(17)
0402318
€58.75
10
1
(78)
0402319
€136.06
7
1
0402320
€215.84
4
1
0402321
€358.48
2
1
(5)
