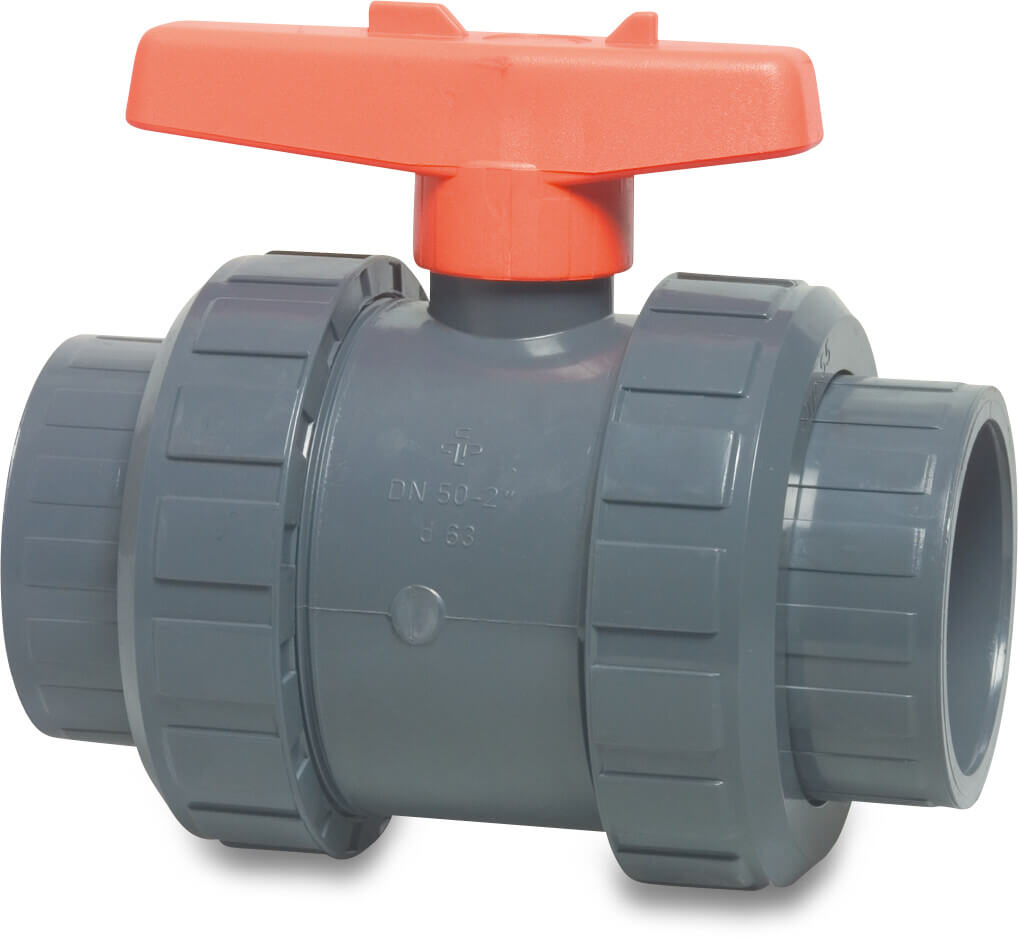

Praher Ball valve PVC-U 40 mm glue socket 16bar grey type S6

Part number 0111503
Praher Ball valve PVC-U 40 mm glue socket 16bar grey type S6
Praher Ball valve PVC-U 40 mm glue socket 16bar grey type S6
Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay excl. VAT €50.07 / 1 pcs
€50.07 / pcs
Price to pay incl. VAT €61.59 / 1 pcs
€61.59 / pcs
24 in stock in Veghel, NL - Item %s is ready to ship, minimum delivery time: %s working days
pcs
Box qty:
20 pcs
MSQ:
1 pcs

Frequently bought together

Hose tail for ball valve PVC-U 40 mm flange x hose tail grey
0111398
Hose tail for ball valve PVC-U 40 mm flange x hose tail grey

€2.73
Profec Ball valve PP/PE 40 mm butt welding 10bar DN32
7036196
Profec Ball valve PP/PE 40 mm butt welding 10bar DN32

€15.25
Profec Socket PVC-U 40 mm glue socket 16bar grey KIWA
0110649
Profec Socket PVC-U 40 mm glue socket 16bar grey KIWA

€0.93
VDL Cap PVC-U 40 mm glue socket 16bar grey
7002815
VDL Cap PVC-U 40 mm glue socket 16bar grey

€1.77
VDL Union coupler PVC-U 40 mm glue socket 16bar grey type A
7002847
VDL Union coupler PVC-U 40 mm glue socket 16bar grey type A

€8.63
VDL Bend 90° PVC-U 40 mm glue socket 16bar grey
7002572
VDL Bend 90° PVC-U 40 mm glue socket 16bar grey

€4.44
VDL Cross-piece PVC-U 40 mm glue socket 16bar grey
7002643
VDL Cross-piece PVC-U 40 mm glue socket 16bar grey

€8.39
Socket PVC-U 40 mm glue socket 16bar grey
0160649
Socket PVC-U 40 mm glue socket 16bar grey

€1.70
Profec T-piece 90° PVC-U 40 mm glue socket 16bar grey
0110246
Profec T-piece 90° PVC-U 40 mm glue socket 16bar grey

€1.67
VDL Stub flange PVC-U 40 mm glue socket DN32 grey
7002867
VDL Stub flange PVC-U 40 mm glue socket DN32 grey

€2.85

Technical details

  • Colour
    grey
  • Handle material
    PVC-U
  • Material
    PVC-U
  • Colour lever
    red
  • Operation
    lever
  • Type
    S6
  • Material seal
    PE/EPDM
  • Temperature range
    0°C - 60°C
  • Pressure
    16 bar
  • Connection
    glue socket
  • EAN
    4019305825030
  • Part number
    0111503
  • Manufacturer
    Praher

Dimensions

  • Ct-1
    76 mm
  • Lb
    151 mm
  • R
    65 mm
  • ØDf
    32 mm
  • ØDi-1
    40 mm
  • ØDi-2
    40 mm
Technical drawing

Product description

The Ball valve, type S6 valve, made out of PVC-U, has a glue socket connection and a pressure of 16 bar. Seal material PE/EPDM. The valves are available in a wide range of sizes.

Praher produces the highest quality valves and fittings for commercial and pool & spa applications.

Read more Read less

Barcode

4019305825030

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
0111500
€28.95
50
1
0111501
€30.82
50
1
(130)
0111502
€45.70
40
1
(22)
0111503
€50.07
20
1
(24)
0111504
€51.68
20
1
0111505
€59.61
10
1
0111506
€249.11
4
1
(7)
7016807
€329.40
4
1
(2)
7016815
€607.35
4
1
(6)
