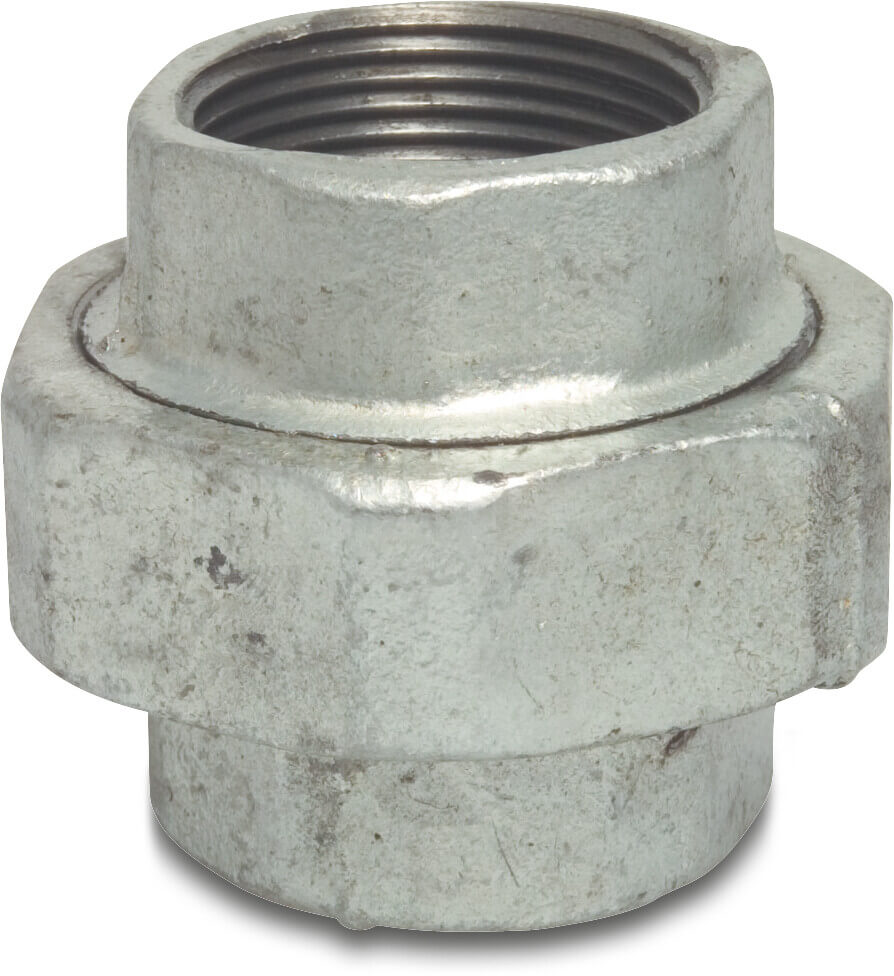

Profec Nr. 330 Union coupler cast iron galvanised 3" female thread 25bar DVGW type flat

Part number 1033011
Skip image gallery
Profec Nr. 330 Union coupler cast iron galvanised 3" female thread 25bar DVGW type flat

Downloads

Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay excl. VAT €61.16 / 1 pcs
€61.16 / pcs
Price to pay incl. VAT €75.23 / 1 pcs
€75.23 / pcs
Out of stock, please contact us for availability
pcs
Box qty:
6 pcs
MSQ:
1 pcs

Frequently bought together

Profec Nr. 270 Socket cast iron black 3" female thread 25bar DVGW
1127011
Profec Nr. 270 Socket cast iron black 3" female thread 25bar DVGW

€18.29
Profec Nr. 90 Elbow 90° cast iron black 3" female thread 25bar DVGW
1109011
Profec Nr. 90 Elbow 90° cast iron black 3" female thread 25bar DVGW

€25.94
Profec Nr. 130 T-piece 90° cast iron black 3" female thread 25bar DVGW
1113011
Profec Nr. 130 T-piece 90° cast iron black 3" female thread 25bar DVGW

€34.26
Quick coupler aluminium 3" female part Camlock x female thread 7,5bar type Camlock D
0431431
Quick coupler aluminium 3" female part Camlock x female thread 7,5bar type Camlock D

€20.21
Quick coupler PP 3" female part Camlock x female thread 5bar black type Camlock D
0431502
Quick coupler PP 3" female part Camlock x female thread 5bar black type Camlock D

€15.55
Profec Nr. 300 Cap stainless steel 316 3" female thread 16bar type octagon
0080710
Profec Nr. 300 Cap stainless steel 316 3" female thread 16bar type octagon

€29.26
Quick coupler forged aluminium 3" female thread CD 81 15bar type Storz 65
0431174
Quick coupler forged aluminium 3" female thread CD 81 15bar type Storz 65

€25.83
Profec Nr. 16 Socket steel 3" female thread 16bar
1171075
Profec Nr. 16 Socket steel 3" female thread 16bar

€10.31
Profec Nr. 120 Elbow 45° stainless steel 316 3" female thread 16bar
0080337
Profec Nr. 120 Elbow 45° stainless steel 316 3" female thread 16bar

€54.31
Profec Ball valve brass nickel plated 3" female thread 25bar type 100
0403009
Profec Ball valve brass nickel plated 3" female thread 25bar type 100

€150.28

Technical details

  • Approval
    DVGW
  • Length
    98 mm
  • Pressure
    25 bar
  • Surface treatment
    galvanised
  • Connection
    female thread
  • Type
    flat
  • Fitting nr.
    Nr. 330
  • Material
    cast iron
  • EAN
    4019305262965
  • Part number
    1033011
  • Manufacturer
    Profec

Dimensions

  • F-1
    29 mm
  • F-2
    29 mm
  • K-1
    94 mm
  • K-2
    94 mm
  • Kn
    128 mm
  • L
    95 mm
  • ØDi-1
    3 "
  • ØDi-2
    3 "

Product description

The Nr. 330 - Coupler is a Fitting with a tensile strength of < 350N/mm2. The fitting has a female thread connection and a galvanised surface treatment. The fitting is available in a wide range of sizes.

The Nr. 330 - Coupler is made from cast iron.
Read more Read less

Barcode

4019305262965

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1033004
€5.57
100
10
(349)
1033005
€6.86
80
10
(310)
1033006
€8.40
60
10
(910)
1033007
€11.76
40
1
(2163)
1033008
€15.85
30
1
(58)
1033009
€22.79
15
1
1033010
€38.67
12
1
1033011
€61.16
6
1
