Foras Jet pump cast iron 1" female thread 7bar 4,7A 230VAC blue self priming type JA 106 N/1

Part number 7034788
Foras Jet pump cast iron 1" female thread 7bar 4,7A 230VAC blue self priming type JA 106 N/1
Foras Jet pump cast iron 1" female thread 7bar 4,7A 230VAC blue self priming type JA 106 N/1
Foras Jet pump cast iron 1" female thread 7bar 4,7A 230VAC blue self priming type JA 106 N/1
Foras Jet pump cast iron 1" female thread 7bar 4,7A 230VAC blue self priming type JA 106 N/1
Select your item below or order directly via full product table
Power
Type
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price excl. VAT £289.95 / 1 pcs
£289.95 / pcs
Price incl. VAT £347.94 / 1 pcs
£347.94 / pcs
Available at supplier, please contact us - Available on request, please call sales team
pcs
Box qty:
1 pcs
MSQ:
1 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

Profec Non return valve PVC-U 1" imperial glue socket white
7036828
Profec Non return valve PVC-U 1" imperial glue socket white

£3.38
Profec Long bend 90° PVC-U 1" imperial glue socket 16bar grey WRAS
7036283
Profec Long bend 90° PVC-U 1" imperial glue socket 16bar grey WRAS

£4.86
Profec Union coupler PVC-U 1" imperial glue socket 16bar grey
7036325
Profec Union coupler PVC-U 1" imperial glue socket 16bar grey

£4.04
VDL Pipe clamp PP 1" black type 2
0111269
VDL Pipe clamp PP 1" black type 2

£1.06
Profec Nr. 121 Elbow 45° brass 1" female thread x male thread 40bar
0708977
Profec Nr. 121 Elbow 45° brass 1" female thread x male thread 40bar

£11.31
T-piece 90° PP 1" female thread 10bar black
0121083
T-piece 90° PP 1" female thread 10bar black

£1.76
Ball valve PP 1" female thread 6bar black
0121646
Ball valve PP 1" female thread 6bar black

£4.55
Rubber seal SBR 1" black
0110872
Rubber seal SBR 1" black

£0.54
Elbow 90° PP 1" female thread 10bar grey
0330109
Elbow 90° PP 1" female thread 10bar grey

£4.29
Profec Nr. 121 Elbow 45° stainless steel 316 1" female thread x male thread 10bar
0081244
Profec Nr. 121 Elbow 45° stainless steel 316 1" female thread x male thread 10bar

£5.20

Technical details

  • Size
    1"
  • Model
    self priming
  • MWC
    47
  • Suction
    1 "
  • Press
    1 "
  • Connection
    female thread
  • Max. temperature
    50 °C
  • Ampere
    4,7 A
  • Voltage
    230VAC
  • Max flow rate
    3.6 m³/h
  • Frequency
    50 Hz
  • Colour
    blue
  • Material impeller 1
    noryl
  • Seal
    type A
  • Pump body
    cast iron
  • Material
    cast iron
  • EAN
    4019305752510
  • Part number
    7034788
  • Manufacturer
    Foras

Dimensions

  • Cb-1
    150 mm
  • Cl-1
    119 mm
  • G-1
    140 mm
  • H
    195 mm
  • H
    195 mm
  • L
    420 mm
  • L
    410 mm
  • Mr
    214 mm
  • O
    9.7 mm
  • W
    180 mm
  • W-1
    180 mm
  • ØDi-1
    1 "
  • ØDi-2
    1 "
Technical drawing

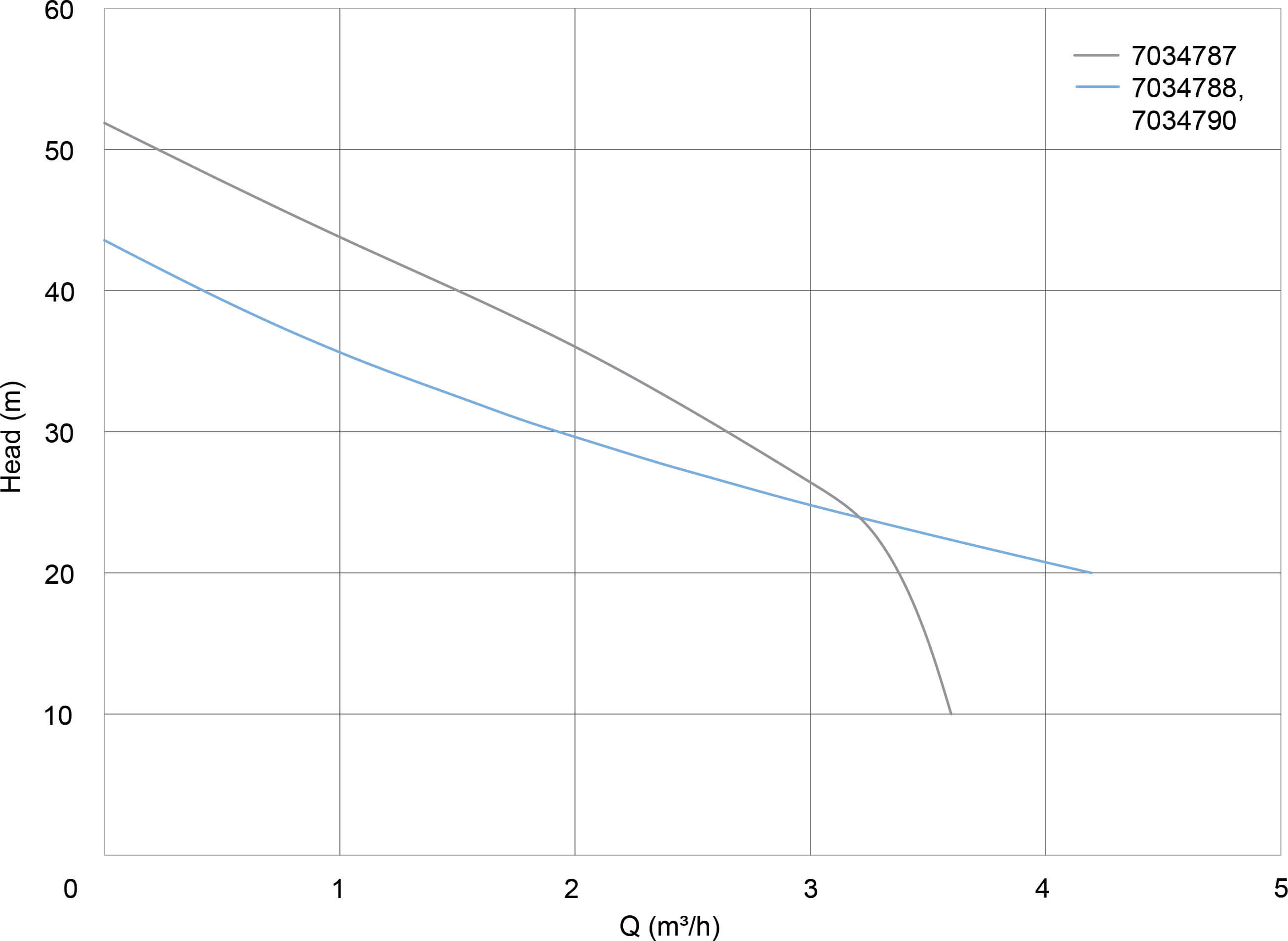

Graph

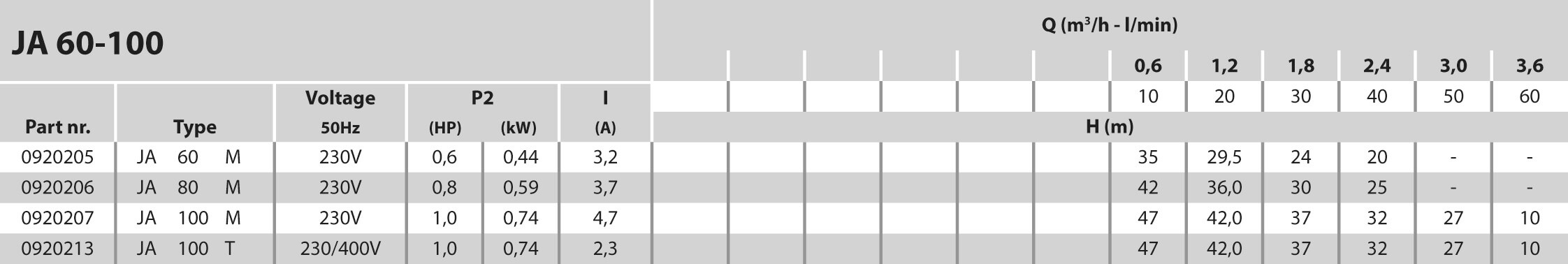

Pump table

Product description

Pumps JA 60 M up to 100 JA M are supplied with cable and DIN plug. UK / DIN plug included for UK deliveries
Read more Read less

Barcode

4019305752510

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
7034788
1.02 kW
JA 106 N/1
£289.95
1
1
7034790
1.05 kW
JA 106 NT
£271.40
1
1
(4)
7034787
1.05 kW
JA 100 T
£284.90
1
1
