Grundfos Multi-stage centrifugal pump stainless steel 1 1/4" 1A 400VAC type CRI 5-2 A CA I V HQQV

Part number 7039728
Full stock overview of all variants
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price incl. VAT £1,766.40 / 1 pcs
£1,766.40 / pcs
Price excl. VAT (£1,472.00 / 1 pcs)
Box qty:
1 pcs
MSQ:
1 pcs
Available at supplier, please contact us
pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

Itap Strainer stainless steel 304 1 1/4" male thread type 120
Itap Strainer stainless steel 304 1 1/4" male thread type 120

£2.01
Profec Nr. 300 Cap stainless steel 316 1 1/4" female thread 16bar type octagon
Profec Nr. 300 Cap stainless steel 316 1 1/4" female thread 16bar type octagon

£7.00
Profec Nr. 330 Union coupler stainless steel 316 1 1/4" female thread 10bar type flat
Profec Nr. 330 Union coupler stainless steel 316 1 1/4" female thread 10bar type flat

£12.63
VDL Adaptor socket PVC-U 1 1/4" female thread 16bar grey with stainless steel ring type reinforced
VDL Adaptor socket PVC-U 1 1/4" female thread 16bar grey with stainless steel ring type reinforced

£8.92
Profec Elbow 90° PVC-U 1 1/4" female thread 10bar grey with stainless steel ring type reinforced
Profec Elbow 90° PVC-U 1 1/4" female thread 10bar grey with stainless steel ring type reinforced

£4.00
Quick coupler stainless steel 316 1 1/4" male part Camlock x female thread 16bar type Camlock A
Quick coupler stainless steel 316 1 1/4" male part Camlock x female thread 16bar type Camlock A

£17.07
Itap Inline filter brass nickel plated 1 1/4" female thread 20bar 300micron DN32 stainless steel 304 type 193
Itap Inline filter brass nickel plated 1 1/4" female thread 20bar 300micron DN32 stainless steel 304 type 193

£23.37
Itap Foot valve spring loaded brass 1 1/4" female thread 18bar DN32 stainless steel 304 type Europa 105
Itap Foot valve spring loaded brass 1 1/4" female thread 18bar DN32 stainless steel 304 type Europa 105

£23.85
Profec Nr. 96 Union elbow 90° stainless steel 316 1 1/4" female thread 16bar type conical
Profec Nr. 96 Union elbow 90° stainless steel 316 1 1/4" female thread 16bar type conical

£23.69
Profec Nr. 341 Union coupler stainless steel 316 1 1/4" female thread x male thread 16bar type conical
Profec Nr. 341 Union coupler stainless steel 316 1 1/4" female thread x male thread 16bar type conical

£22.16

Technical details

  • Motor RPM
    2770
  • Max flow rate
    8.5 m³/h
  • Maximum ambient temperature
    40 °C
  • Type
    CRI 5-2 A CA I V HQQV
  • Pump body
    stainless steel 316
  • IP value
    IP55
  • Material
    stainless steel
  • Output Power
    0.5 HP
  • Ampere
    1 A
  • Shaft
    stainless steel 316
  • Temperature range
    -20°C - 90°C
  • Frequency
    50 Hz
  • Impellers
    2
  • Material impeller 1
    stainless steel 304
  • Voltage
    400VAC
  • Suction
    1 1/4 "
  • Size
    1 1/4"
  • EAN
    4019305784979
  • Part number
    7039728
  • Manufacturer
    Grundfos

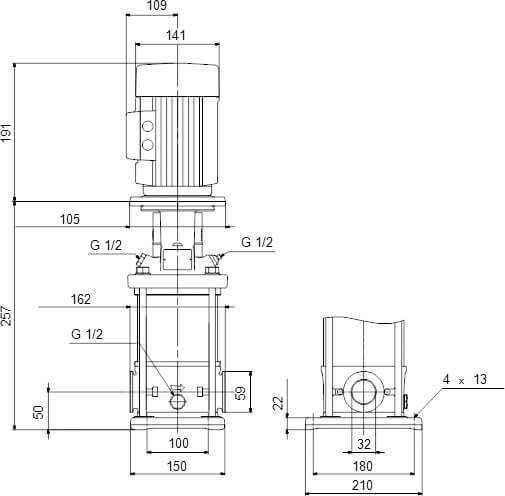

Dimensions

  • ØDi-2
    35 mm
  • Cb-1
    50 mm
  • L
    160 mm
  • H-1
    448 mm
  • Cb-2
    50 mm
  • W-1
    210 mm
  • ØDi-1
    35 mm

Barcode

4019305784979

Variants

Part number
Power
MWC
Price
Box qty
MSQ
Stock
7039728
0.37 kW
13
£1,472.00
1
1
7039729
0.55 kW
20
£1,472.00
1
1
7039730
0.55 kW
27
£1,472.00
1
1
7039731
0.75 kW
35
£1,472.00
1
1
7039732
1.1 kW
40
£1,472.00
1
1
7039733
1.1 kW
40
£1,472.00
1
1
7039734
1.1 kW
55
£1,472.00
1
1
7039735
1.5 kW
60
£1,472.00
1
1
7039736
1.5 kW
70
£1,472.00
1
1
7039737
2.2 kW
78
£1,472.00
1
1
7039738
2.2 kW
80
£1,472.00
1
1
