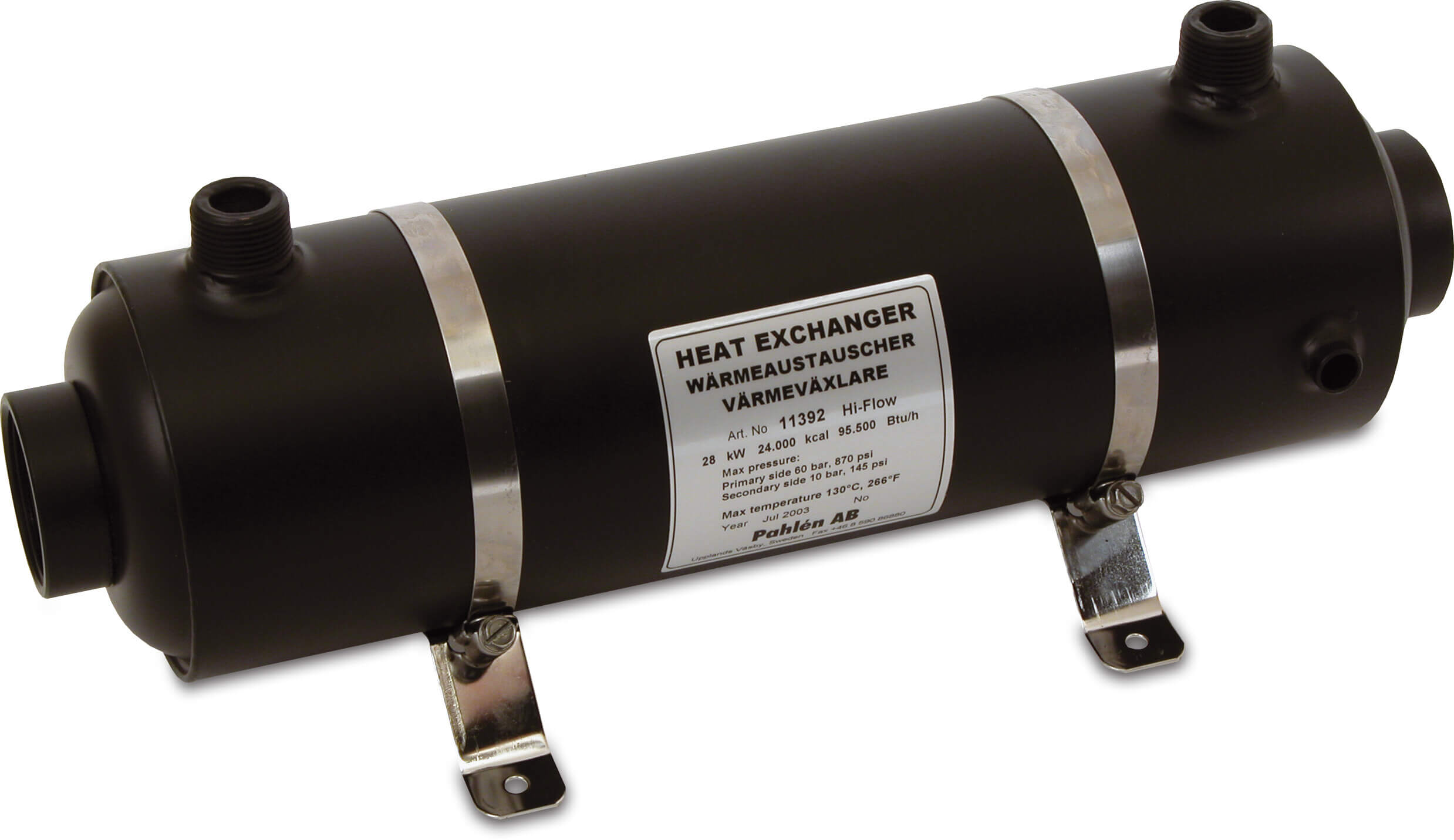

Heat exchanger stainless steel 316 male thread x female thread HF 28
Part number 0891980
Downloads
- Fast, free shipping on orders over £350*
- Your trade partner in water technology
- 9.1/10 Read reviews
Technical details
-
Connectionmale thread x female thread
-
Pressure primary system30 bar
-
Pressure secondary system8 bar
-
Flow primary system25 ltr/min
-
Size secondary system1 1/2 "
-
Flow secondary system300 ltr/min
-
Materialstainless steel 316
-
EAN4019305313285
-
Part number0891980

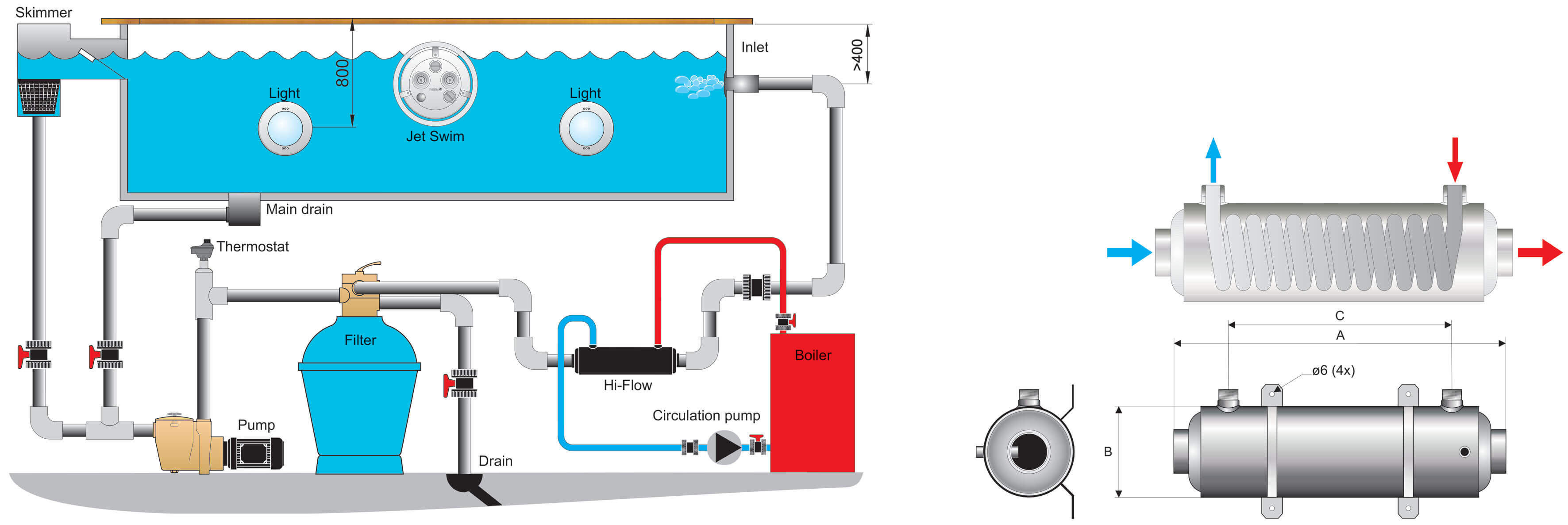

Dimensions
-
A mm407
-
B mm129
-
C mm263
Similar products
Product description
Hi-Flow is a well-tried and tested heat exchanger with effective heat transfer capabilities. It is intended for swimming pools and other applications where there is a demand for high capacity together with a low-pressure drop. All models can be installed together with boilers, heat pumps, solar panels or other heat sources. These heat exchangers are light and compact. The material used - acid proof stainless steel AISI 316 - is chosen with regard to working conditions where there is a risk of corrosion. Stainless steel adjustable fixings are included. Suitable for chlorine based pools. Horizontal Mounting only.
