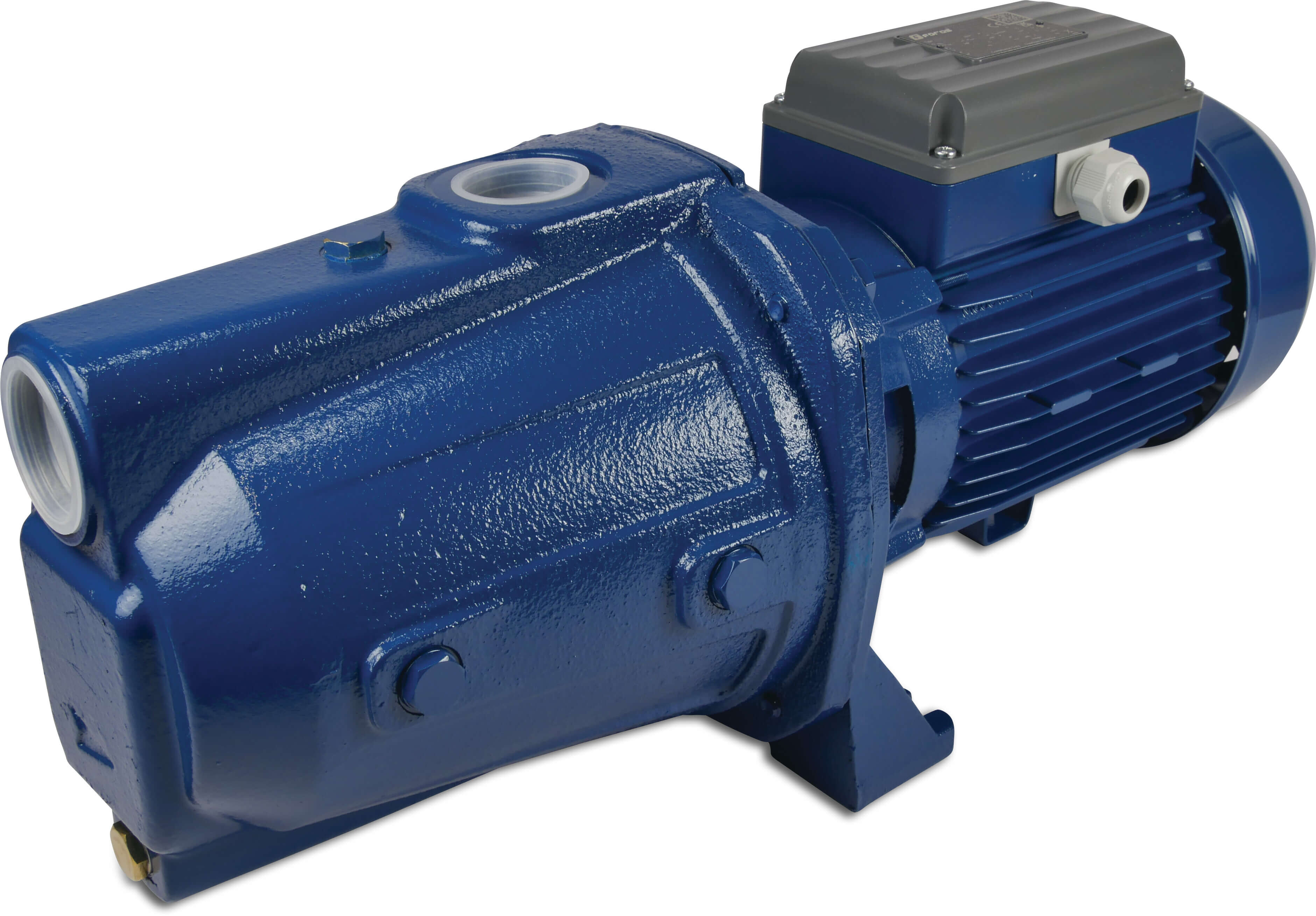

Foras Kreiselpumpe Gusseisen 1 1/2" x 1 1/4" Innengewinde 8bar 4,8A 230/400VAC Blau selbstansaugend Typ JAM 300 T
Artikelnummer 7034807
Handbücher & Zeichnungen
Häufig zusammen gekauft
Technische Details
-
Modellselbstansaugend
-
Förderhöhe64,8 M
-
TypJAM 300 T
-
Druck1 1/4 "
-
Saug1 1/2 "
-
AnschlussInnengewinde
-
Max. Temperatur50 °C
-
Gleitringdichtungtype B
-
Herz50 Hz
-
Ampere4,8 A
-
FarbeBlau
-
Material Laufrad 1Noryl
-
Maß1 1/2" x 1 1/4"
-
Spannung230/400VAC
-
Max Durchfluss72 m³/h
-
PumpengehäuseGusseisen
-
WerkstoffGusseisen
-
EAN4019305752701
-
Artikelnummer7034807
-
HerstellerForas
Abmessungen
-
Cb-1175 mm
-
Cl-1167 mm
-
G-1165 mm
-
H231.5 mm
-
H-1231.5 mm
-
L506 mm
-
L506 mm
-
Mr269.6 mm
-
O9 mm
-
W203 mm
-
W-1203 mm
-
ØDi-11 1/2 "
-
ØDi-21 1/4 "
Ähnliche Produkte
Produkt beschreibung
Uses: Self-priming centrifugal pump for water supplies (even if mixed with gas) in small household systems, connected to autoclave tanks, for transferring liquids and emptying tanks; also used for gardening.
Construction features: Cast iron pump casing with threaded inlet and outlet; cast iron motor bracket; impeller in Noryl or in brass; ceramic - graphite mechanical seal; motor shaft in AISI 416 steel; world leading brand ball bearings; liquid temperature range 0 - 50 °C; max. operating pressure 8 bar.
MOTOR2 pole electric induction motor for continuous operations; stator made with low-loss laminated electric sheet steel; insulation Class F; IP 44 protection level; thermal protection for single-phase models; the user is responsible for supplying protection for the three-phase models.
