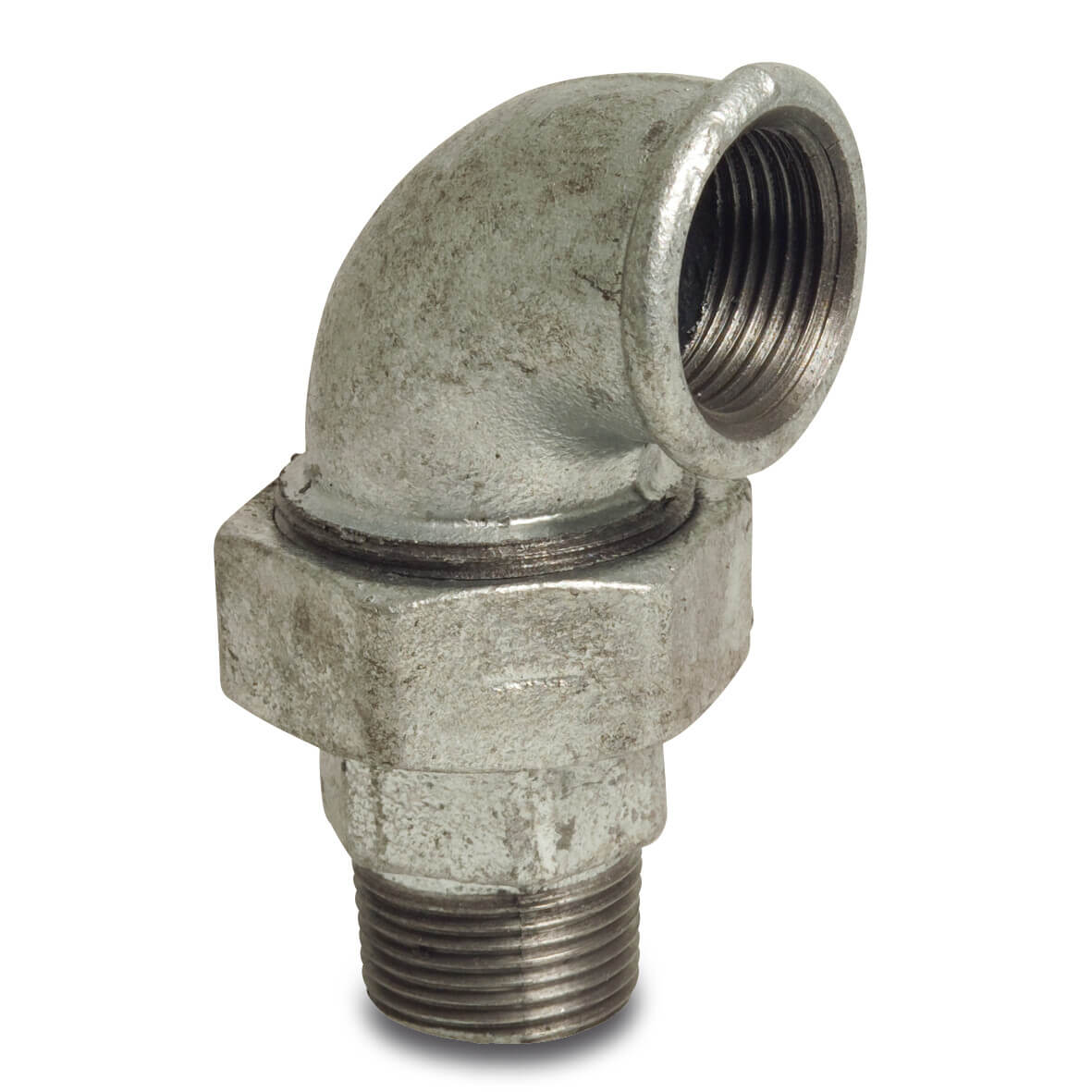

Profec Nr. 98 Union elbow 90° cast iron galvanised 3/8" female thread x male thread 25bar DVGW type conical

Part number 1009802
Skip image gallery
Profec Nr. 98 Union elbow 90° cast iron galvanised 3/8" female thread x male thread 25bar DVGW type conical

Downloads

Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price excl. VAT £933.00 / 100 pcs
£9.33 / pcs
Price incl. VAT £1,119.60 / 100 pcs
£11.20 / pcs
Available at supplier, please contact us - Available on request, please call sales team
pcs
Box qty:
100 pcs
MSQ:
100 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

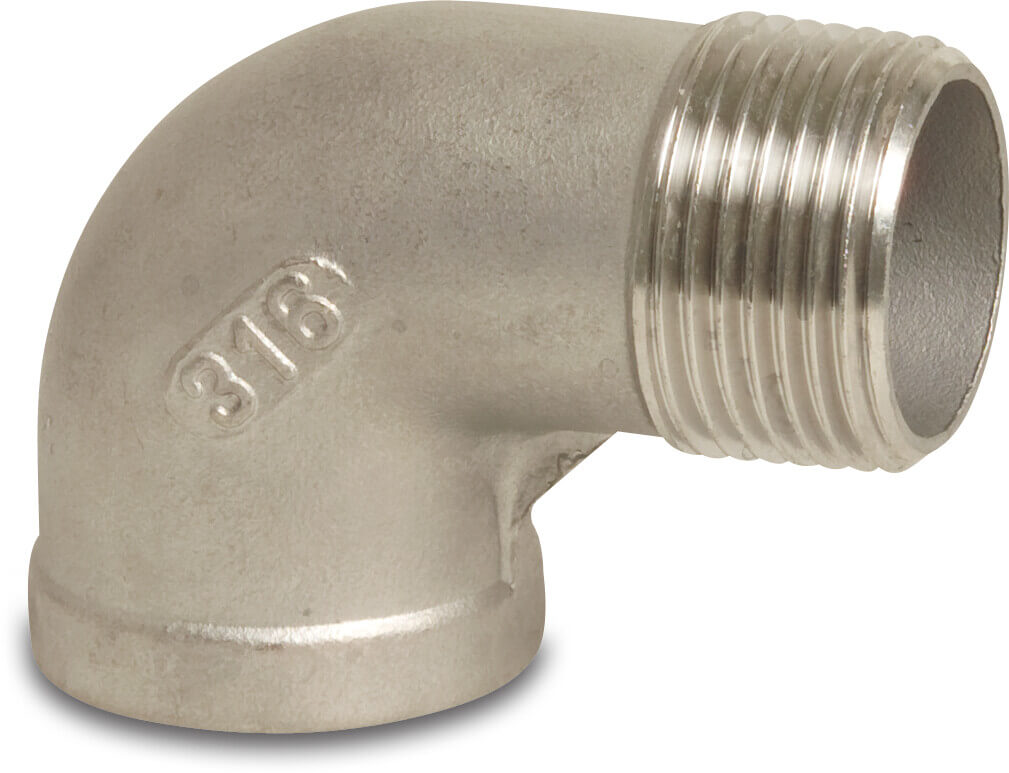

Profec Nr. 92 Elbow 90° stainless steel 316 3/8" female thread x male thread 16bar
0080017
Profec Nr. 92 Elbow 90° stainless steel 316 3/8" female thread x male thread 16bar

£2.47
Profec Nr. 290 Hexagon plug stainless steel 316 3/8" male thread 16bar
0080172
Profec Nr. 290 Hexagon plug stainless steel 316 3/8" male thread 16bar

£1.54
Profec Nr. 270 Socket stainless steel 316 3/8" female thread 16bar
0080142
Profec Nr. 270 Socket stainless steel 316 3/8" female thread 16bar

£1.49
Profec Nr. 130 T-piece 90° stainless steel 316 3/8" female thread 16bar
0080037
Profec Nr. 130 T-piece 90° stainless steel 316 3/8" female thread 16bar

£2.40
Profec Quick coupler brass 3/8" female thread CD 40 12bar
0420109
Profec Quick coupler brass 3/8" female thread CD 40 12bar

£2.88
Profec Nr. 23 Pipe nipple brass 3/8" male thread 40bar 60 mm
0701805
Profec Nr. 23 Pipe nipple brass 3/8" male thread 40bar 60 mm

£4.55
Profec Ball valve brass nickel plated 3/8" female thread x male thread 25bar type 104 VA
0403046
Profec Ball valve brass nickel plated 3/8" female thread x male thread 25bar type 104 VA

£4.63
Profec Pipe clamp with pin steel galvanised 3/8" 15-19 mm
0329200
Profec Pipe clamp with pin steel galvanised 3/8" 15-19 mm

£0.41
Nr. 290 Plug bronze 3/8" male thread 25bar
0720586
Nr. 290 Plug bronze 3/8" male thread 25bar

£6.65
Profec Plug PVC-U 3/8" male thread 10bar grey
0110600
Profec Plug PVC-U 3/8" male thread 10bar grey

£0.74

Technical details

  • Connection
    female thread x male thread
  • Approval
    DVGW
  • Fitting nr.
    Nr. 98
  • Pressure
    25 bar
  • Surface treatment
    galvanised
  • Type
    conical
  • Temperature range
    -20°C - 120°C
  • Material
    cast iron
  • EAN
    4019305004176
  • Part number
    1009802
  • Manufacturer
    Profec

Dimensions

  • Cb-1
    25 mm
  • Cr-1
    65 mm
  • ØDi-1
    3/8 "
  • ØDo-2
    3/8 "
  • ß
    90 °

Product description

The Nr. 98 - Union elbow 90° is a fitting with a tensile strength of < 350N/mm2. The fitting has a female thread x male thread connection with a galvanised surface treatment. The fitting is available in a wide range of sizes.

The Nr. 98 - Union elbow 90° is made from cast iron.
Read more Read less

Barcode

4019305004176

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1009802
3/8"
£9.33
100
100
1009803
1/2"
£9.21
70
10
1009804
3/4"
£12.05
60
1
1009805
1"
£14.43
30
1
1009806
1 1/4"
£20.14
20
1
1009807
1 1/2"
£25.07
15
1
1009808
2"
£36.88
8
1
(233)
1009809
2 1/2"
£61.77
4
1
(1)
1009810
3"
£105.49
2
1
