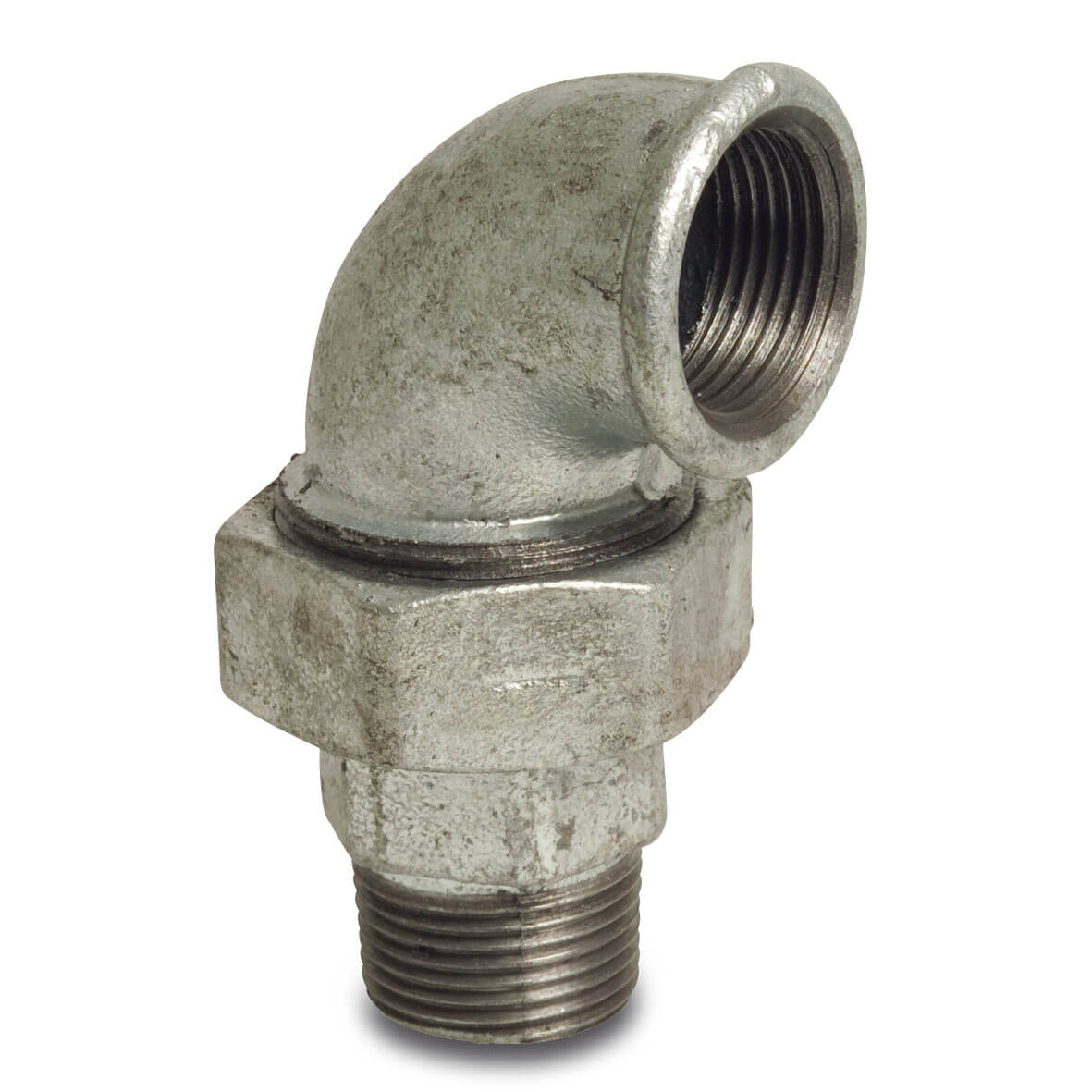

Profec Nr. 98 Union elbow 90° cast iron galvanised 3" female thread x male thread 25bar DVGW type conical

Part number 1009810
Profec Nr. 98 Union elbow 90° cast iron galvanised 3" female thread x male thread 25bar DVGW type conical

Downloads

Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price excl. VAT £105.49 / 1 pcs
£105.49 / pcs
Price incl. VAT £126.59 / 1 pcs
£126.59 / pcs
Out of stock, please contact us for availability
pcs
Box qty:
2 pcs
MSQ:
1 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

Profec Nr. 23B Welding nipple steel 3" male thread x butt welding 16bar
1191207
Profec Nr. 23B Welding nipple steel 3" male thread x butt welding 16bar

£4.44
Profec Nr. 130 T-piece 90° cast iron black 3" female thread 25bar DVGW
1113011
Profec Nr. 130 T-piece 90° cast iron black 3" female thread 25bar DVGW

£30.34
Profec Nr. 280 Nipple stainless steel 316 3" male thread 16bar
0080350
Profec Nr. 280 Nipple stainless steel 316 3" male thread 16bar

£27.48
Profec Nr. 290 Hexagon plug stainless steel 316 3" male thread 16bar
0080353
Profec Nr. 290 Hexagon plug stainless steel 316 3" male thread 16bar

£24.90
Profec Nr. 130 T-piece 90° stainless steel 316 3" female thread 16bar
0080340
Profec Nr. 130 T-piece 90° stainless steel 316 3" female thread 16bar

£66.35
Elbow PP 3" Victaulic SDR7,4 35bar
7037735
Elbow PP 3" Victaulic SDR7,4 35bar

£12.20
Profec Ball valve brass nickel plated 3" female thread x male thread 25bar type 104
0403024
Profec Ball valve brass nickel plated 3" female thread x male thread 25bar type 104

£138.05
Profec Nr. 92 Elbow 90° brass 3" female thread x male thread 20bar
0708810
Profec Nr. 92 Elbow 90° brass 3" female thread x male thread 20bar

£74.24
Plug PP 3" male thread 10bar black
7037799
Plug PP 3" male thread 10bar black

£2.83
Quick coupler aluminium 3" male part Camlock x female thread 7,5bar type Camlock A
0431439
Quick coupler aluminium 3" male part Camlock x female thread 7,5bar type Camlock A

£7.36

Technical details

  • Connection
    female thread x male thread
  • Approval
    DVGW
  • Fitting nr.
    Nr. 98
  • Pressure
    25 bar
  • Surface treatment
    galvanised
  • Type
    conical
  • Temperature range
    -20°C - 120°C
  • Material
    cast iron
  • EAN
    4019305207454
  • Part number
    1009810
  • Manufacturer
    Profec

Dimensions

  • Cb-1
    83 mm
  • Cr-1
    168 mm
  • ØDi-1
    3 "
  • ØDo-2
    3 "
  • ß
    90 °

Product description

The Nr. 98 - Union elbow 90° is a fitting with a tensile strength of < 350N/mm2. The fitting has a female thread x male thread connection with a galvanised surface treatment. The fitting is available in a wide range of sizes.

The Nr. 98 - Union elbow 90° is made from cast iron.
Read more Read less

Barcode

4019305207454

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1009802
3/8"
£9.33
100
100
1009803
1/2"
£9.21
70
10
1009804
3/4"
£12.05
60
1
1009805
1"
£14.43
30
1
1009806
1 1/4"
£20.14
20
1
1009807
1 1/2"
£25.07
15
1
1009808
2"
£36.88
8
1
(233)
1009809
2 1/2"
£61.77
4
1
(1)
1009810
3"
£105.49
2
1
