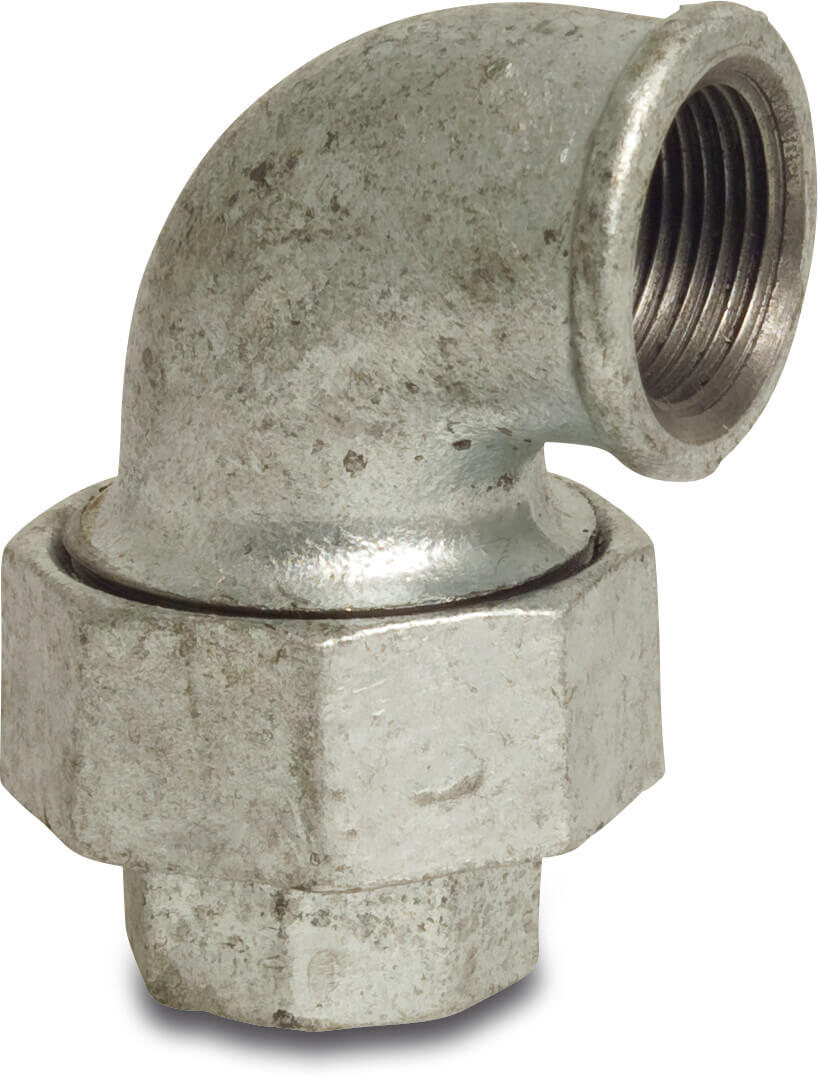

Profec Nr. 96 Union elbow 90° cast iron galvanised 3" female thread 25bar DVGW type conical

Part number 1009610
Skip image gallery
Profec Nr. 96 Union elbow 90° cast iron galvanised 3" female thread 25bar DVGW type conical
Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price excl. VAT £94.81 / 1 pcs
£94.81 / pcs
Price incl. VAT £113.77 / 1 pcs
£113.77 / pcs
62 in stock in Veghel, NL - Item %s is ready to ship, minimum delivery time: %s working days
pcs
Box qty:
2 pcs
MSQ:
1 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

Profec Nr. 130 T-piece 90° cast iron black 3" female thread 25bar DVGW
1113011
Profec Nr. 130 T-piece 90° cast iron black 3" female thread 25bar DVGW

£30.34
Profec Nr. 23B Welding nipple steel 3" male thread x butt welding 16bar
1191207
Profec Nr. 23B Welding nipple steel 3" male thread x butt welding 16bar

£4.44
Profec Nr. 280 Nipple stainless steel 316 3" male thread 16bar
0080350
Profec Nr. 280 Nipple stainless steel 316 3" male thread 16bar

£27.48
Profec Nr. 290 Hexagon plug stainless steel 316 3" male thread 16bar
0080353
Profec Nr. 290 Hexagon plug stainless steel 316 3" male thread 16bar

£24.90
Elbow PP 3" Victaulic SDR7,4 35bar
7037735
Elbow PP 3" Victaulic SDR7,4 35bar

£12.20
Profec Ball valve brass nickel plated 3" female thread x male thread 25bar type 104
0403024
Profec Ball valve brass nickel plated 3" female thread x male thread 25bar type 104

£138.05
Profec Nr. 90 Elbow 90° brass 3" female thread 20bar
0708801
Profec Nr. 90 Elbow 90° brass 3" female thread 20bar

£78.28
Quick coupler forged aluminium 3" female thread CD 81 15bar type Storz 65
0431174
Quick coupler forged aluminium 3" female thread CD 81 15bar type Storz 65

£22.46
Quick coupler aluminium 3" male part Camlock x female thread 7,5bar type Camlock A
0431439
Quick coupler aluminium 3" male part Camlock x female thread 7,5bar type Camlock A

£7.36
Plug PP 3" male thread 10bar black
7037799
Plug PP 3" male thread 10bar black

£2.83

Technical details

  • Approval
    DVGW
  • Pressure
    25 bar
  • Surface treatment
    galvanised
  • Type
    conical
  • Connection
    female thread
  • Temperature range
    -20°C - 120°C
  • Fitting nr.
    Nr. 96
  • Material
    cast iron
  • EAN
    4019305207423
  • Part number
    1009610
  • Manufacturer
    Profec

Dimensions

  • Cb-1
    133 mm
  • Cr-1
    83 mm
  • F-1
    30 mm
  • F-2
    32 mm
  • K-1
    95 mm
  • Kn
    128 mm
  • ØDi-1
    3 "
  • ØDi-2
    3 "
  • ß
    90 °

Product description

The Nr. 96 - Union elbow 90° is a fitting with a tensile strength of < 350N/mm2. The fitting has a female thread connection with a galvanised surface treatment. The fitting is available in a wide range of sizes.

The Nr. 96 - Union elbow 90° is made from cast iron.
Read more Read less

Barcode

4019305207423

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1009602
3/8"
£8.36
100
100
(77)
1009603
1/2"
£8.31
80
10
(11)
1009604
3/4"
£10.75
60
1
1009605
1"
£12.61
40
1
1009606
1 1/4"
£17.54
20
1
(13)
1009607
1 1/2"
£22.64
15
1
1009608
2"
£33.55
10
1
1009609
2 1/2"
£56.14
4
1
1009610
3"
£94.81
2
1
(62)
