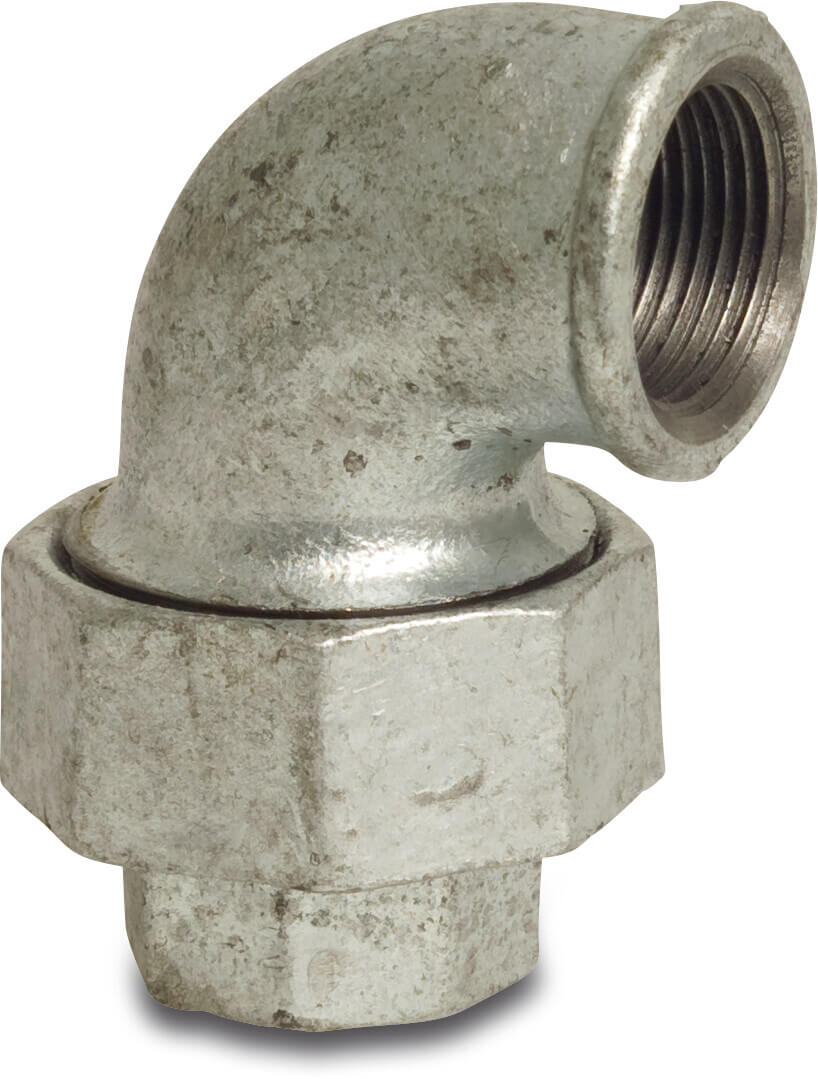

Profec Nr. 96 Union elbow 90° cast iron galvanised 1/2" female thread 25bar DVGW type conical

Part number 1009603
Profec Nr. 96 Union elbow 90° cast iron galvanised 1/2" female thread 25bar DVGW type conical
Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price excl. VAT £83.10 / 10 pcs
£8.31 / pcs
Price incl. VAT £99.72 / 10 pcs
£9.97 / pcs
11 in stock in Veghel, NL - Item %s is ready to ship, minimum delivery time: %s working days
pcs
Box qty:
80 pcs
MSQ:
10 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

Profec Nr. 223 Cross-piece cast iron galvanised 1/2" female thread 25bar DVGW
1022302
Profec Nr. 223 Cross-piece cast iron galvanised 1/2" female thread 25bar DVGW

£4.82
Drinker bracket 15° malleable cast iron galvanised 1/2" female thread
1200000
Drinker bracket 15° malleable cast iron galvanised 1/2" female thread

£1.96
Profec Nr. 300 Hexagon cap cast iron black 1/2" female thread 25bar DVGW
1130004
Profec Nr. 300 Hexagon cap cast iron black 1/2" female thread 25bar DVGW

£0.93
Profec Nr. 90 Elbow 90° stainless steel 316 1/2" female thread 16bar
0080008
Profec Nr. 90 Elbow 90° stainless steel 316 1/2" female thread 16bar

£2.73
Profec Nr. 23B Welding nipple steel 1/2" male thread x butt welding 16bar
1191200
Profec Nr. 23B Welding nipple steel 1/2" male thread x butt welding 16bar

£0.39
Profec Nr. 270A Socket stainless steel 316 1/2" female thread 10bar
0080153
Profec Nr. 270A Socket stainless steel 316 1/2" female thread 10bar

£1.16
Profec Nr. 23 Pipe nipple stainless steel 304 1/2" male thread 50bar 40 mm
0081563
Profec Nr. 23 Pipe nipple stainless steel 304 1/2" male thread 50bar 40 mm

£2.23
Profec Nr. 290 Hexagon plug stainless steel 316 1/2" male thread 16bar
0080173
Profec Nr. 290 Hexagon plug stainless steel 316 1/2" male thread 16bar

£1.60
Profec Quick coupler brass 1/2" male thread CD 40 12bar
0420212
Profec Quick coupler brass 1/2" male thread CD 40 12bar

£2.64
Profec Nr. 23 Pipe nipple brass 1/2" male thread 40bar 40 mm
0701811
Profec Nr. 23 Pipe nipple brass 1/2" male thread 40bar 40 mm

£3.64

Technical details

  • Approval
    DVGW
  • Pressure
    25 bar
  • Surface treatment
    galvanised
  • Type
    conical
  • Connection
    female thread
  • Temperature range
    -20°C - 120°C
  • Fitting nr.
    Nr. 96
  • Material
    cast iron
  • EAN
    4019305004046
  • Part number
    1009603
  • Manufacturer
    Profec

Dimensions

  • Cb-1
    58 mm
  • Cr-1
    28 mm
  • F-1
    12 mm
  • F-2
    10 mm
  • K-1
    26 mm
  • Kn
    44 mm
  • ØDi-1
    1/2 "
  • ØDi-2
    1/2 "
  • ß
    90 °

Product description

The Nr. 96 - Union elbow 90° is a fitting with a tensile strength of < 350N/mm2. The fitting has a female thread connection with a galvanised surface treatment. The fitting is available in a wide range of sizes.

The Nr. 96 - Union elbow 90° is made from cast iron.
Read more Read less

Barcode

4019305004046

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1009602
3/8"
£8.36
100
100
(77)
1009603
1/2"
£8.31
80
10
(11)
1009604
3/4"
£10.75
60
1
1009605
1"
£12.61
40
1
1009606
1 1/4"
£17.54
20
1
(13)
1009607
1 1/2"
£22.64
15
1
1009608
2"
£33.55
10
1
1009609
2 1/2"
£56.14
4
1
1009610
3"
£94.81
2
1
(62)
