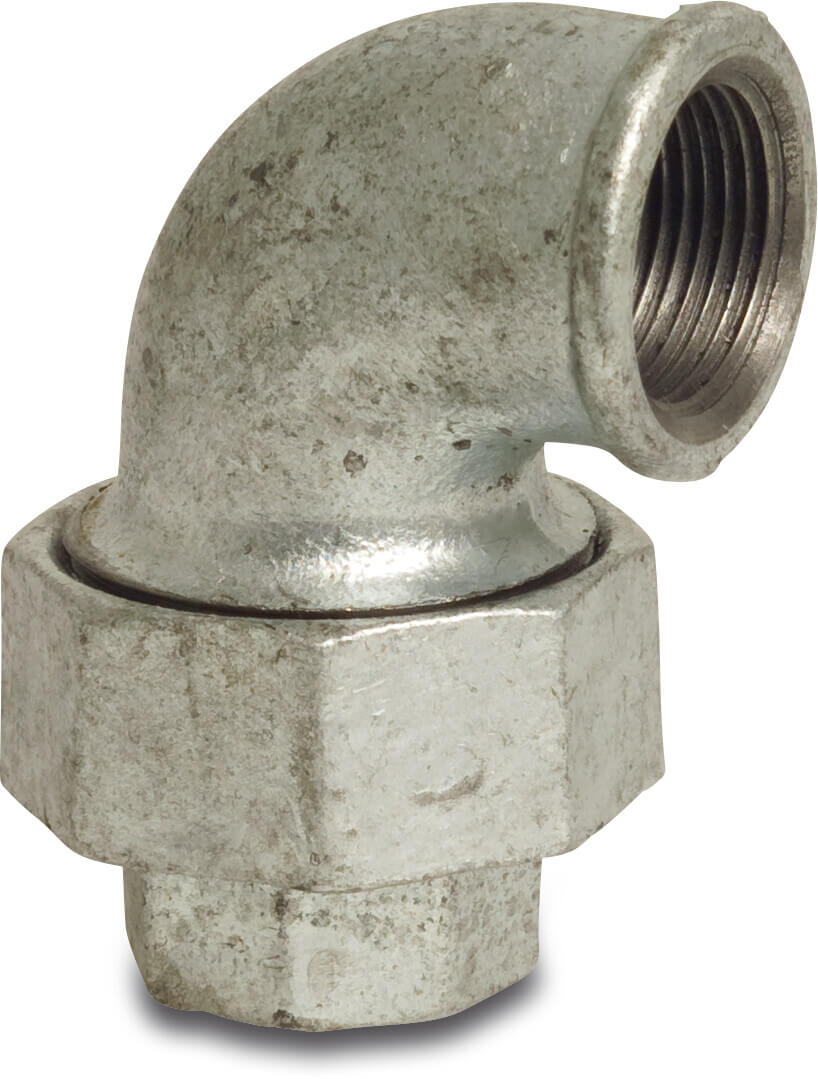

Profec Nr. 96 Union elbow 90° cast iron galvanised 2 1/2" female thread 25bar DVGW type conical

Part number 1009609
Profec Nr. 96 Union elbow 90° cast iron galvanised 2 1/2" female thread 25bar DVGW type conical
Select your item below or order directly via full product table
Size
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price excl. VAT £56.14 / 1 pcs
£56.14 / pcs
Price incl. VAT £67.37 / 1 pcs
£67.37 / pcs
Out of stock, please contact us for availability
pcs
Box qty:
4 pcs
MSQ:
1 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

Profec Nr. 270 Socket cast iron black 2 1/2" female thread 25bar DVGW
1127010
Profec Nr. 270 Socket cast iron black 2 1/2" female thread 25bar DVGW

£10.57
Profec Nr. 90 Elbow 90° stainless steel 316 2 1/2" female thread 16bar
0080330
Profec Nr. 90 Elbow 90° stainless steel 316 2 1/2" female thread 16bar

£35.17
Profec Nr. 130 T-piece 90° stainless steel 316 2 1/2" female thread 16bar
0080339
Profec Nr. 130 T-piece 90° stainless steel 316 2 1/2" female thread 16bar

£45.50
Profec Nr. 23B Welding nipple stainless steel 316 2 1/2" male thread x butt welding 8bar 60 mm
0080751
Profec Nr. 23B Welding nipple stainless steel 316 2 1/2" male thread x butt welding 8bar 60 mm

£8.73
Elbow 90° PP 2 1/2" female thread 10bar black
7037794
Elbow 90° PP 2 1/2" female thread 10bar black

£16.89
Profec Ball valve brass nickel plated 2 1/2" female thread 25bar type 100
0403008
Profec Ball valve brass nickel plated 2 1/2" female thread 25bar type 100

£97.71
Profec Nr. 90 Elbow 90° brass 2 1/2" female thread 20bar
0708800
Profec Nr. 90 Elbow 90° brass 2 1/2" female thread 20bar

£56.66
Quick coupler forged aluminium 2 1/2" female thread CD 66 15bar type Storz 52C
0431151
Quick coupler forged aluminium 2 1/2" female thread CD 66 15bar type Storz 52C

£6.18
Quick coupler aluminium 2 1/2" female part Camlock x female thread 10bar type Camlock D
0431430
Quick coupler aluminium 2 1/2" female part Camlock x female thread 10bar type Camlock D

£13.79
Profec Cap PVC-U 2 1/2" female thread 10bar grey type plain
7036405
Profec Cap PVC-U 2 1/2" female thread 10bar grey type plain

£4.46

Technical details

  • Approval
    DVGW
  • Pressure
    25 bar
  • Surface treatment
    galvanised
  • Type
    conical
  • Connection
    female thread
  • Temperature range
    -20°C - 120°C
  • Fitting nr.
    Nr. 96
  • Material
    cast iron
  • EAN
    4019305207416
  • Part number
    1009609
  • Manufacturer
    Profec

Dimensions

  • Cb-1
    119 mm
  • Cr-1
    78 mm
  • F-1
    27 mm
  • F-2
    24 mm
  • K-1
    84 mm
  • Kn
    110 mm
  • ØDi-1
    2 1/2 "
  • ØDi-2
    2 1/2 "
  • ß
    90 °

Product description

The Nr. 96 - Union elbow 90° is a fitting with a tensile strength of < 350N/mm2. The fitting has a female thread connection with a galvanised surface treatment. The fitting is available in a wide range of sizes.

The Nr. 96 - Union elbow 90° is made from cast iron.
Read more Read less

Barcode

4019305207416

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1009602
3/8"
£8.36
100
100
(77)
1009603
1/2"
£8.31
80
10
(11)
1009604
3/4"
£10.75
60
1
1009605
1"
£12.61
40
1
1009606
1 1/4"
£17.54
20
1
(13)
1009607
1 1/2"
£22.64
15
1
1009608
2"
£33.55
10
1
1009609
2 1/2"
£56.14
4
1
1009610
3"
£94.81
2
1
(62)
