Foras Multi-stage centrifugal pump cast iron 1 1/4" female thread 4,1A 230/400VAC blue type P7SV - 250/5T

Part number 0920431
Skip image gallery
Select your item below or order directly via full product table
Power
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price excl. VAT £829.93 / 1 pcs
£829.93 / pcs
Price incl. VAT £995.92 / 1 pcs
£995.92 / pcs
Out of stock, please contact us for availability
pcs
Box qty:
1 pcs
MSQ:
1 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Frequently bought together

Profec Nr. 330 Union coupler cast iron galvanised 1 1/4" female thread 25bar DVGW type flat
1033007
Profec Nr. 330 Union coupler cast iron galvanised 1 1/4" female thread 25bar DVGW type flat

£10.41
Profec Nr. 96 Union elbow 90° cast iron galvanised 1 1/4" female thread 25bar DVGW type conical
1009606
Profec Nr. 96 Union elbow 90° cast iron galvanised 1 1/4" female thread 25bar DVGW type conical

£17.54
Itap Ball valve brass nickel plated 1 1/4" female thread 5bar DVGW type 066
0401084
Itap Ball valve brass nickel plated 1 1/4" female thread 5bar DVGW type 066

£27.13
Profec Ball valve brass nickel plated 1 1/4" female thread 10bar DVGW type 107
0401186
Profec Ball valve brass nickel plated 1 1/4" female thread 10bar DVGW type 107

£21.24
Profec Elbow 90° PVC-U 1 1/4" female thread 10bar grey with stainless steel ring type reinforced
0100303
Profec Elbow 90° PVC-U 1 1/4" female thread 10bar grey with stainless steel ring type reinforced

£4.00
Profec Pipe clamp steel galvanised 1 1/4"
0329243
Profec Pipe clamp steel galvanised 1 1/4"

£0.15
Elbow 90° PP 1 1/4" female thread 10bar grey
0330110
Elbow 90° PP 1 1/4" female thread 10bar grey

£6.82
Cap PP 1 1/4" female thread 10bar grey
0330163
Cap PP 1 1/4" female thread 10bar grey

£5.61
Profec Bulkhead back nut PVC-U 1 1/4" female thread grey
0100567
Profec Bulkhead back nut PVC-U 1 1/4" female thread grey

£2.65
Quick coupler stainless steel 316 1 1/4" male part Camlock x female thread 16bar type Camlock A
0075083
Quick coupler stainless steel 316 1 1/4" male part Camlock x female thread 16bar type Camlock A

£17.07

Technical details

  • Maximum ambient temperature
    40 °C
  • Type
    P7SV - 250/5T
  • Max flow rate
    10.8 m³/h
  • Press
    1 1/4 "
  • Connection
    female thread
  • Impellers
    5
  • Frequency
    50 Hz
  • Output Power
    2,5 HP
  • Ampere
    4,1 A
  • IP value
    IP44
  • Seal
    type M
  • Shaft
    stainless steel 304
  • Colour
    blue
  • MWC
    60,3
  • Material impeller 1
    noryl
  • Suction
    1 1/4 "
  • Size
    1 1/4"
  • Voltage
    230/400VAC
  • Pump body
    cast iron
  • Material
    cast iron
  • EAN
    4019305196956
  • Part number
    0920431
  • Manufacturer
    Foras

Dimensions

  • Cb-1
    40 mm
  • Cb-2
    202 mm
  • Cl-1
    135 mm
  • G-1
    125 mm
  • G-2
    178.5 mm
  • H
    473 mm
  • H-2
    220 mm
  • L
    229 mm
  • Lb
    220 mm
  • O
    11 mm
  • W-1
    162 mm
  • W-2
    204 mm
  • ØDi-1
    1 1/4 "
  • ØDi-2
    1 1/4 "

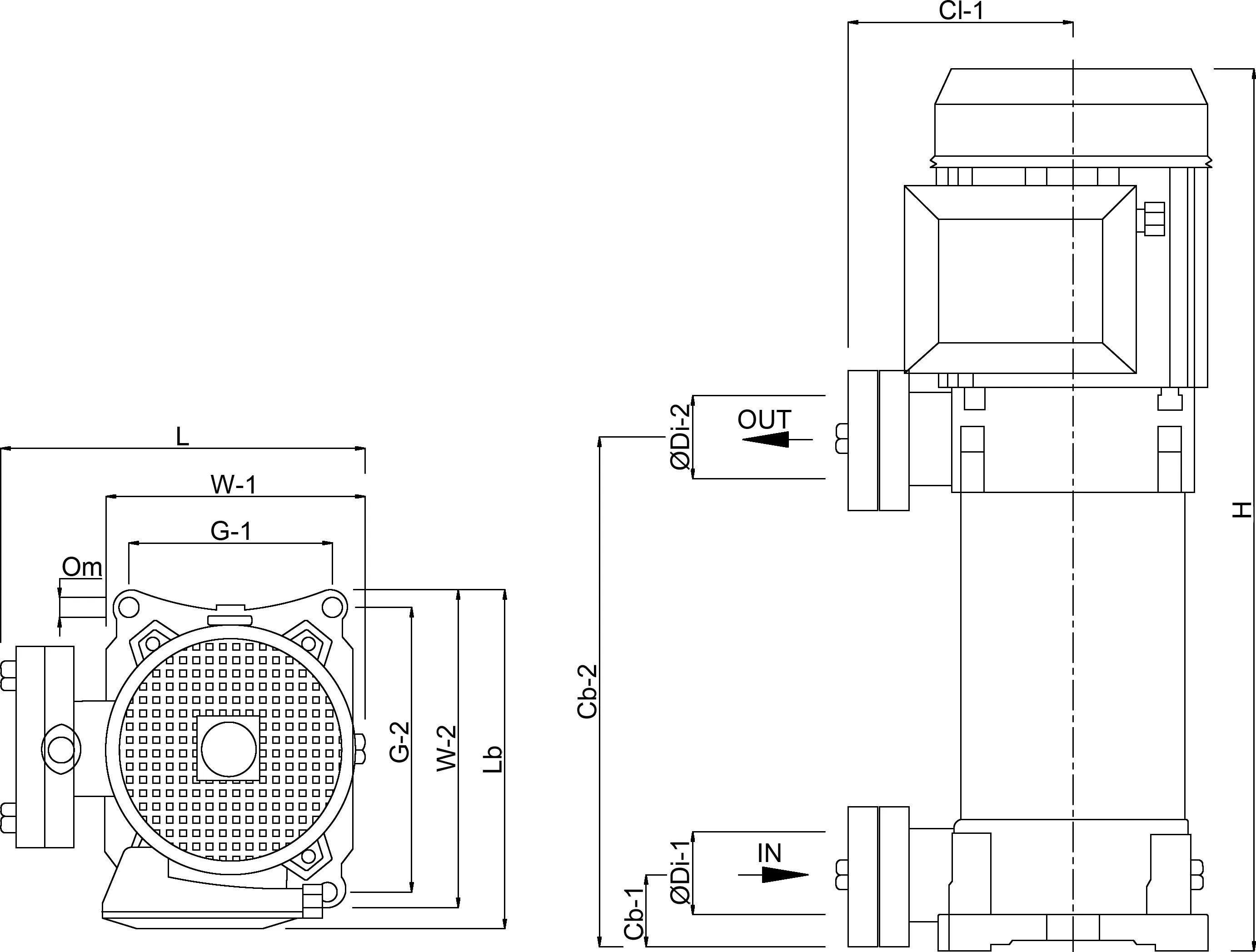

Technical drawing

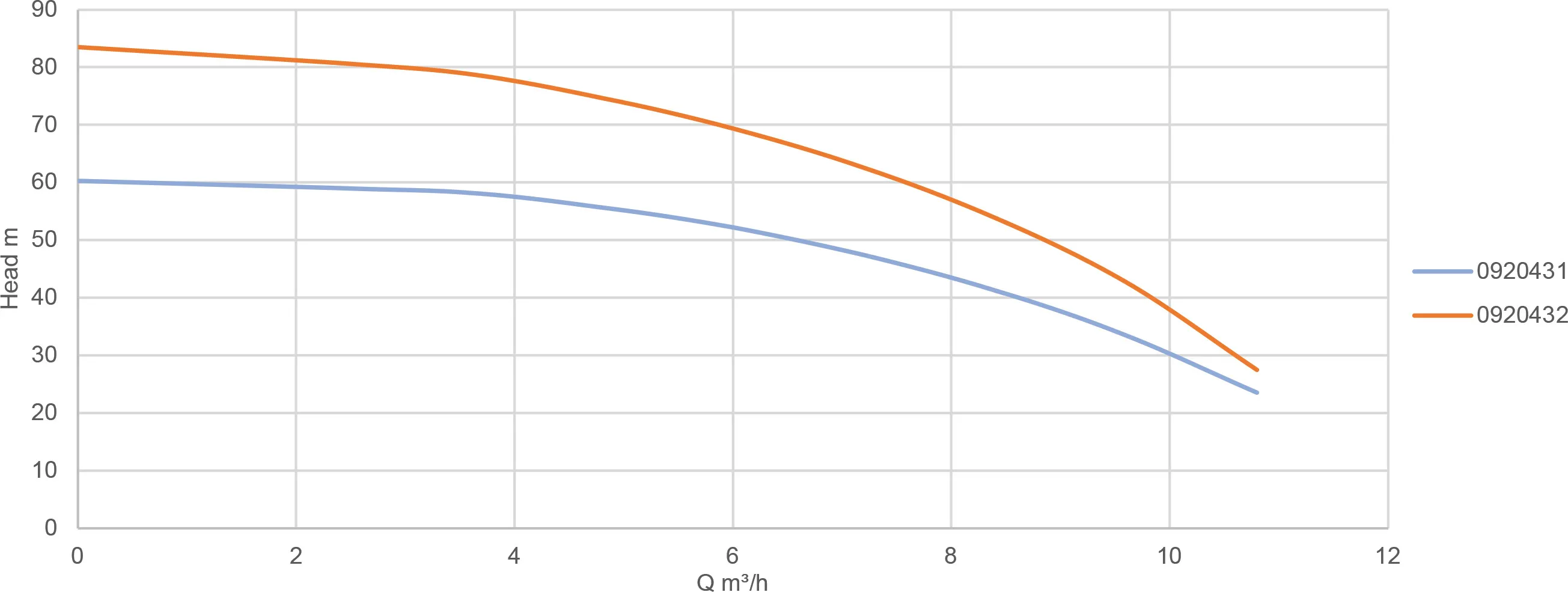

Graph

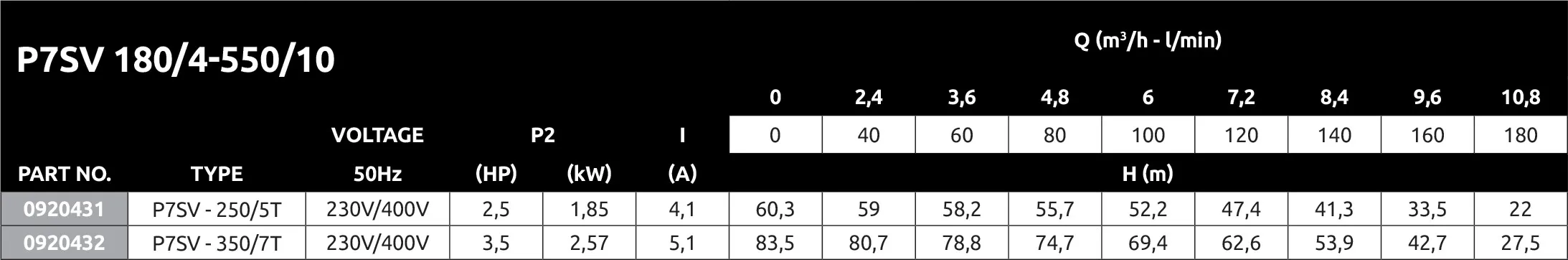

Pump table

Product description

Multistage vertical pumps. Pumping of clean non-loaded fluids in the domestic, agricultural and industrial sectors; pressurising systems; irrigation; drinking and glycol water; water treatment; food industry; heating and air conditioning; washing system.
Maximum liquid temperature: from - 15 to 90°C.
Ambient temperature: max 40°C.
Insulation class F; protection degree IP 44.

Supplied without cable.

Read more Read less

Barcode

4019305196956

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
0920431
1.85 kW
£829.93
1
1
0920432
2.57 kW
£1,242.42
1
1
